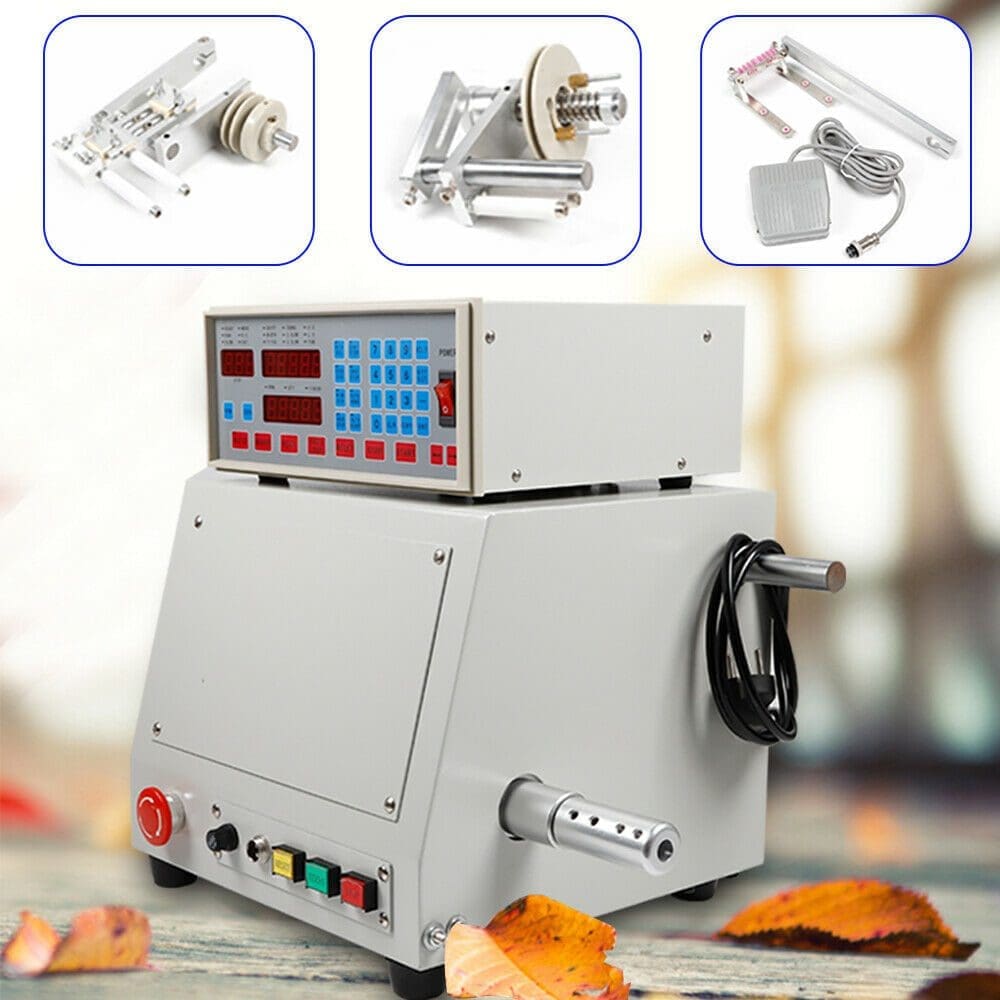

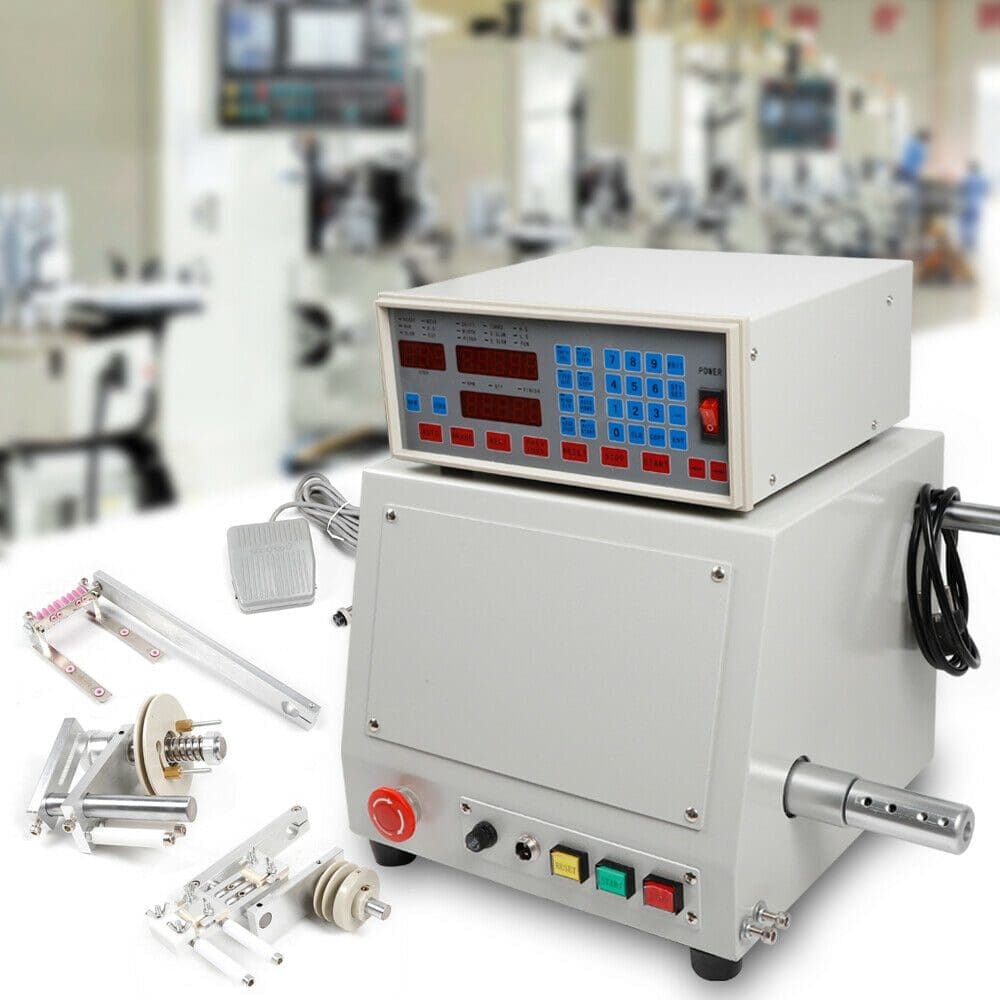

Cable winding machine
This thread winding machine TORC It is fully automatic and features a high-precision, synchronized, state-of-the-art intelligent system that monitors all faults during the process. This intelligent function tells you about overspeed during the process, calibrates the winding speed and performs a self-check process. The clamp function allows you to easily measure the winding width.
The engine of the automatic winder TORCMBH10 It is controlled by a speed-controlling computer, which allows the speed to be controlled during the process while synchronizing the string oscillator with it.
You can set all the data such as: starting point, wire size, winding compensation width, winding start speed, slow stop, winding speed, slow rotation speed, winding compensation direction, winding direction, bipolar stop, auto restart and start. It has memory capacity of 999 parameters.
Warranty TORC 2 YEARS
Efficient thread rewinder, low consumption 350w
technical support included
| Brand: | ARC | ||
| Country of distribution: | Spain, Germany, USA | Machine dimensions: | 47 x 48 x 39 cm |
| Warranty: | 2 Years | Power: | 350 W |
| Color: | Silver | Input voltage: | 220V – 60Hz |
| Product Type: | Electric thread winder | Maximum winding width: | 110 mm |
| Manufacturer number: | ARCMBH10 | Wire Size: | 0.03 – 1.2 mm |
| Material: | Reinforced steel, efficient motor, smart computer | Maximum turning speed: | 6000 revolutions per minute |
| Installation tools: | Yeah | Counting resolution: | 0.1 circles |
| Weight: | 29 Kg | Storable groups: | 999 winding memories |
